Your Professional Woodworking Rip Saw Supplier!



Sichuan Qingcheng Machinery Co., Ltd. was founded in 1970, is an enterprise integrating R&D, manufacturing, sales and service of solid wood processing technology and equipment with independent intellectual property rights and independent brand. Our company mainly produces woodworking Four-Side Moulder, Double-Side Planer, Multi-blade Rip Saw, Double-end Tenoner and Five-axis CNC Machine,etc. Products are sold all over the country and exported to more than 50 countries and regions in the world, are well received by customers everywhere and we have established long-term strategic cooperative partnership.





Why Choose Us


Professional Team
We possess strong technical R&D capabilities. Our R&D team consists of 55 members, including 30 professionals with senior and intermediate professional titles, forming a highly qualified and professional technical backbone.



Advanced Equipment
We have introduced hundreds of internationally advanced processing equipment, including core manufacturing equipment such as laser cutting machines, five-sided gantry machining centers, horizontal and vertical machining centers, milling machines, and high-precision grinding centers. We also utilize high-precision testing equipment such as coordinate measuring machines to fully guarantee product processing accuracy and quality consistency.



R&D Capabilities
We have obtained over 50 national patents, including 21 invention patents, and have completed international trademark registrations in 25 countries and regions. Our independently developed MXK/MSK series woodworking mortising equipment and its application results have won provincial science.



Quality Control
We are the first to obtain ISO 9001 international quality management system certification and EU CE safety certification. We have established a comprehensive quality control system and possess import and export qualifications. Our products meet international standards and have global market access.



Specification


Working thickness

40～70mm

Max. working width

450mm

Min. working length

600mm

Feeding speed

6～24m/min

Spindle dia

φ60mm

Spindle speed

4500r/min

Upper blade dia

φ160mm

Bottom blade dia

φ160mm

Total power

64.75kW

Top spindle motor(compression motor)

30kW

Bottom spindle motor

30kW

Feeding motor

4kW

Beam lifting motor

0.75kW

Upper feeding wheel dia

φ140×φ35mm

Dust outlet dia

φ140×4个

Table height

860mm

Dimension(L×W×H)

285×158×162cm

Weight

2800kg



Main Benefits Of Woodworking Rip Saw

QMJ143E High Precision Multi-blade Rip Saw(Top Saw)

Increased ripping efficiency and productivity: Multiple blades can rip boards much faster than a single saw blade. This allows higher volume production.


Thinner kerf ripping: Each blade removes less wood, resulting in thinner boards and less waste.


Wider ripping capacity: Woodworking rip saws can produce wider planks in one pass compared to a regular circular saw.


Consistent thickness boards: The stacked blades provide uniform thickness boards. This helps with joining boards together.


Simultaneous ripping: The blades allow ripping matching sets of boards at the same time. This is useful for projects like flooring.

Versatility: A woodworking rip saw can rip both thin and wide boards depending on configuration. Useful for varied projects.


Cost savings: Increased yield and less milling waste can provide good cost savings over the long run.


Safer operation: The blades are shrouded guards and kickback protection features. Results in a safer working environment.


Easier maintenance: Having multiple smaller blades spreads out wear and makes blade changes faster.


Precision and control: Computerized or hydraulic power feed allows very precise ripping.

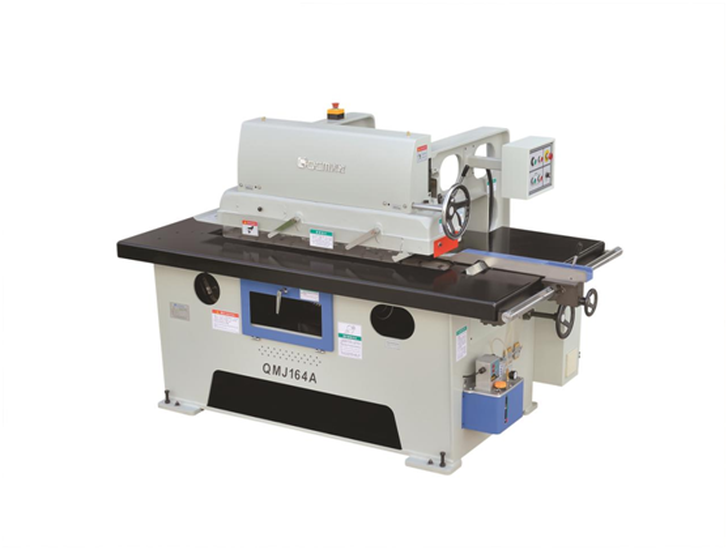

QMJ164A Straight Line Rip Saw(Tottom Saw)



Types of Woodworking Rip Saw



Round log multi rip saw machine
A log multi rip saw is a woodworking machine that cuts round logs into boards. It uses thin and small size saw blades, which have low load and energy saving. The log multi rip saw is a circular saw composed of several cutting units connected together and whose distance can be adjusted precisely. It allows you to cut large pieces into planks, beams or profiled wood in one step. The variants of these special machines differ depending on the height of the cut and the variable feeding speed.


Square multi rip saw machine
Square wood multi rip saw is a type of large square wood processing machine.The multi rip saw is mainly used for sawing square timber wood into a plurality of square bars. This machine has high production efficiency, high stability, simple operation and maintenance, and high finish of the material. It is suitable for cutting thick timber and large-scale production.


Wood board multi rip saw machine
It adopts track-type transmission feeding, with high performance and high precision. It is mainly used for sawing Solid wood composite flooring, laminate flooring, panel furniture, wooden packaging box, laminated timber, photo frame is sawn into multiple pieces of equal or different specifications in one time.



Basic Principles of Woodworking Rip Saw

QMJ6420E Automatic Double-end Flush Saw

Woodworking rip saw consists of multiple high-speed rotating saw blades that work concurrently to effectively rip wood. During cutting, the wood is secured on a workbench, and the high-speed rotating blades cut it into the required size and shape. Since multiple blades operate simultaneously, a woodworking rip saw completes cutting tasks faster than a single-blade saw while maintaining high precision.


The cutting accuracy of a woodworking rip saw can reach the millimeter level, making it suitable for dimensionally precise tasks. Its fast cutting speed typically produces smoother surfaces, reducing subsequent processing requirements.



Woodworking Rip Saw Applications


Furniture Manufacturing

Perfect for cutting multiple components simultaneously, optimizing time and resources.

Timber Processing

Ideal for ripping timber into precise widths, making it a crucial tool in sawmills and timber processing facilities.

Flooring Production

Ensure consistent and precise cuts for flooring materials, improving the quality of installations.

Panel Processing

Efficiently cut large panels into smaller, uniform pieces with precision, enhancing overall productivity.



Requirements For Using Woodworking Rip Saw



01


During operation, ensure that the workpiece is securely fixed and positioned correctly in relation to the cutting direction to avoid abnormal cutting. Avoid applying lateral pressure or making curved cuts. Feed the material smoothly and avoid blade impact with the workpiece to prevent blade damage or workpiece ejection, which can lead to accidents.


02


If abnormal noise, vibration, rough cutting surfaces, or unusual odors are detected during operation, the work should be immediately stopped. Conduct a thorough inspection and troubleshoot the issue to prevent accidents.


03


For dry cutting, avoid continuous cutting for extended periods to prevent premature wear of the saw blade and maintain cutting efficiency. When performing wet cutting, use water as a coolant and take precautions against electrical leakage.

MJ263H Multi-blade Rip Saw(Top and Bottom Saw)



Our Services

Pre-Sale Service

Provide detailed introductions of our products, assist customers in selecting appropriate options, and recommend products that best meet their needs.

In-Sale Service

Deliver high-quality products with efficient shipping processes while keeping customers informed throughout all stages of production.

After-Sale Service

Ensure prompt responses to any inquiries or issues that may arise.



Packaging and Shipping


Packaging

Wooden box, PE film

Transportation methods

Road transport, rail transport, sea transport, air transport





Video







Our Certificate



productcate-1-1





FAQ



Q: How does a woodworking rip saw work?

A: Woodworking rip saw consists of multiple high-speed rotating saw blades that work concurrently to effectively rip wood. During cutting, the wood is secured on a workbench, and the high-speed rotating blades cut it into the required size and shape. Since multiple blades operate simultaneously, a woodworking rip saw completes cutting tasks faster than a single-blade saw while maintaining high precision.

Q: What are the advantages of a woodworking rip saw?

A: Increased ripping efficiency and productivity: Multiple blades can rip boards much faster than a single saw blade. This allows higher volume production.
Thinner kerf ripping: Each blade removes less wood, resulting in thinner boards and less waste.
Wider ripping capacity: Woodworking rip saws can produce wider planks in one pass compared to a regular circular saw.

Q: What precautions should be taken when using a woodworking rip saw?

A: During operation, ensure that the workpiece is securely fixed and positioned correctly in relation to the cutting direction to avoid abnormal cutting. Avoid applying lateral pressure or making curved cuts. Feed the material smoothly and avoid blade impact with the workpiece to prevent blade damage or workpiece ejection, which can lead to accidents.

We're professional woodworking rip saw manufacturers and suppliers in China, specialized in providing high quality custom service. We warmly welcome you to buy high-grade woodworking rip saw from our factory.
