China Mortising Machine Manufacturers Suppliers Factory - Custom Mortising Machine

Your Professional Mortising Machine Supplier

Our goal is to be your reliable partner for mortising machine in China. Sichuan Qingcheng Machinery Co., Ltd. is an enterprise integrating R&D, manufacturing, sales and service of solid wood processing technology. We have a skilled engineering team dedicated to refining every stage, from product development and process improvement to production oversight, ensuring every product delivered meets rigorous quality and performance standards. The price is competitive and the product is quality-assured, which is a good choice for your long-term cooperation.

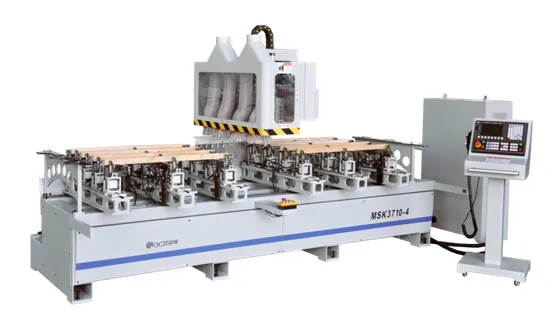

MSK3710-4 CNC Mortiser Machine
Max. width of mortise mm: 25
Max. depth of mortise mm: 100
X-axis trip mm: 2800
Y-axis trip: mm: 170
view more
MS3113B Chisel Mortising Machine
Max.length of mortise mm: 130
Max. depth of mortise mm: 60
Max. width of mortise mm: 16
Worktable lifting trip mm: 70
view more

Why Choose Us

Production equipment

Our company boasts a wealth of advanced processing equipment, including laser cutting machines, five-sided gantry machining centers, horizontal/vertical machining centers, milling/turning centers, high-precision grinding centers, and precision testing instruments and equipment, including coordinate measuring machines.

Our certifications

Our company was the first in the industry to obtain ISO9001 international quality system certification and EU CE safety certification.

R&D capabilities

Our company has been granted over 50 national patents, including 21 invention patents, and has registered international trademarks in 25 countries and regions. Our independently developed MXK/MSK series woodworking mortising equipment and its application results have received provincial scientific and technological achievement awards.

Our services

Our team of experts will recommend the most suitable products according to customer needs and provide detailed consultation, we ensure timely delivery, and we provide long-term service support.

Advantages of Mortising Machine

Increased efficiency and speed

A mortising machine rapidly excavates square holes, making quick work of a task that would be time-consuming and labor-intensive with a mallet and chisels.

Consistent results

The machine's built-in fences, hold-downs, and depth stops ensure that every mortise in a project is consistent in size, depth, and placement. This repeatability is crucial for production runs or complex projects.

Efficient waste removal

The hollow chisel contains an auger bit that drills and clears out the bulk of the waste material. This dual action prevents the machine from jamming and leads to a cleaner finished mortise.

Superior accuracy and precision

Unlike a router, which leaves rounded corners, a hollow chisel mortiser produces perfectly square holes, which fit perfectly with square-shouldered tenons.

Specification of Mortising Machine

Item	Unit	MSK3710-4
Max. width of mortise	mm	25
Max. depth of mortise	mm	100
X-axis trip	mm	2800
Y-axis trip	mm	170
Z-axis trip	mm	200
Milling head QTY	pcs	4
Cutter handle dia.	mm	Φ12.7
Max. spindle speed	r/min	18000
Max. moving speed	m/min	20
Milling motor	KW	3.0×4
X-axis motor	KW	1.5
Y-axis motor	KW	1.0
Z-axis motor	KW	1.0
Air supply pressure	MPa	0.40
Dust outlet	mm	Φ120×4
Air need of collection system	m3/min	120
Air speed of collection system	m/s	30~40
Dimension	cm	360×164×210
Weight	Kg	2200

Features of Mortising Machine

Power

The motor’s horsepower (hp) plays a vital role in determining its capability to handle various wood types. A higher hp is advantageous when working with dense hardwoods, while a lower hp May suffice for softer woods.

Stroke length

This measurement indicates how far the chisel can descend. A longer stroke length enables the creation of deeper mortises, crucial for larger joints. Ensure that the stroke length of the mortiser machine aligns with your task requirements, significantly impacting the efficiency of mortising.

Chisel size

Mortisers are available with various chisel sizes, generally ranging from 1/4 inch to 1 inch. Selecting a chisel size that corresponds to the mortise dimensions you intend to create is vital.

Types of Mortising Machine

Hollow-chisel mortisers

These machines, which use a hollow chisel paired with a drill bit, excel at producing precise mortises. They are particularly beneficial for projects requiring both accuracy and speed, making them a preferred choice among carpentry professionals.

Benchtop jointers

Compact and portable, benchtop jointers are ideal for smaller workshops. Although they typically offer lower power output, they are sufficiently robust for most home woodworking tasks, striking a balance between functionality and space efficiency.

Chain machines

Engineered for high-volume production, chain machines employ a chain mechanism to swiftly cut slots. These heavy-duty devices are commonly found in commercial settings where efficiency is paramount, constituting roughly 10% of the market share.

Cnc mortisers

Computer numerical control (cnc) mortisers automate the mortising process, facilitating intricate designs and high precision. They are especially suited for large-scale production, ensuring consistent results across multiple pieces.

Application of Mortising Machine

A mortising machine cuts precise, square-cornered holes in wood, called mortises, which are used with a tenon to create a strong furniture joint. Its primary application is to efficiently cut repetitive mortises for woodworking projects such as furniture, cabinets, and other wood structures.

The process involves a unique hollow chisel and an internal auger bit that first removes most of the wood waste and then squares off the walls of the hole, ensuring a perfectly sized fit for a matching tenon. It's ideal for creating the precise, interlocking joints needed for tables, chairs, and cabinet construction.

Packing and Shipping of Mortising Machine

Packing	Wooden box/tray
Shipping	Shipped by road, sea, rail

FAQ

Q: What does a mortising machine do?

A: A mortising machine creates precise, square holes in wood, known as mortises, primarily used for mortise and tenon joinery in woodworking.

Q: What are the three safety checks before using a mortise machine?

A: Ensure no slip/trip hazards are present in the workspace or walkway. Check the condition of the auger and chisel. They should be kept sharp at all times. Check the operation of all fences, holding clamps and machine guards.

Q: Can you use a mortising machine as a drill press?

A: No, a dedicated mortiser cannot function effectively as a drill press, nor can a standard drill press easily perform mortising without a hollow-chisel mortising attachment.

Q: What is a mortising drill used for?

A: Mortising bits cut square holes. The auger bit fits inside the chisel and protrudes slightly. During operation, the auger drills a round hole and the four-sided chisel squares the corners. Cut side by side, square holes create mortises.

Q: Is it possible to drill a square hole?

A: Yes, it's possible to create square holes through several methods, including using a special mortise drill bit that combines a rotating bit with a stationary chisel, or by using a drill press with a router and an endmill, or by drilling pilot holes and broaching them into square shapes.

We're professional mortising machine manufacturers and suppliers in China, specialized in providing high quality custom service. We warmly welcome you to buy high-grade mortising machine from our factory.
