Your Professional Double-Side Planer Supplier!
Sichuan Qingcheng Machinery Co., Ltd. was founded in 1970, is an enterprise integrating R&D, manufacturing, sales and service of solid wood processing technology and equipment with independent intellectual property rights and independent brand. Our company mainly produces woodworking Four-Side Moulder, Double-Side Planer, Multi-blade Rip Saw, Double-end Tenoner and Five-axis CNC Machine,etc. Products are sold all over the country and exported to more than 50 countries and regions in the world, are well received by customers everywhere and we have established long-term strategic cooperative partnership.
-

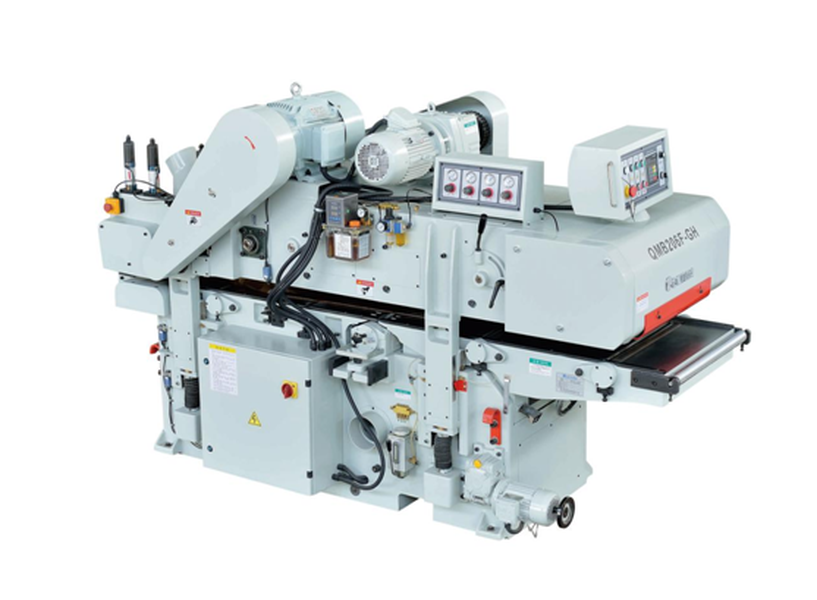

![QMB206F-GH Double-side Planer Machine(high Pseed)]()
QMB206F-GH Double-side Planer Machine(high Pseed)Working width: 50~630mmview more
Working thickness: 10~170mm
Min. working length: 310mm
Max. cut depth one time top cutter: 5mm -

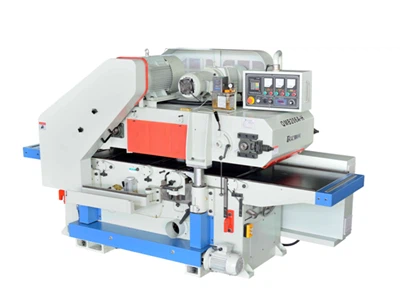

![QMB206A-H Double-side Planer Machine(heavy Duty)]()
QMB206A-H Double-side Planer Machine(heavy Duty)Working width: 50~635mmview more
Working thickness: 8~210mm
Min. working length: 310mm
Feeding speed: 6～30m/min -
![QMB204G Double-sided Woodworking Planer Machine]()
QMB204G Double-sided Woodworking Planer MachineMax. working width: 445mmview more
Working thickness: 10~200mm
Min. working length: 310mm
Cutting depth top spindle: 5mm -
![QMB206G Double-side Wood Planer]()
QMB206G Double-side Wood PlanerMax. workingwidth mm: 630view more
Max. workingthickness mm: 200
Min. workingthickness mm: 10
Min. workinglength mm: 310
Why Choose Us
Professional Team
We possess strong technical R&D capabilities. Our R&D team consists of 55 members, including 30 professionals with senior and intermediate professional titles, forming a highly qualified and professional technical backbone.
Advanced Equipment
We have introduced hundreds of internationally advanced processing equipment, including core manufacturing equipment such as laser cutting machines, five-sided gantry machining centers, horizontal and vertical machining centers, milling machines, and high-precision grinding centers. We also utilize high-precision testing equipment such as coordinate measuring machines to fully guarantee product processing accuracy and quality consistency.
R&D Capabilities
We have obtained over 50 national patents, including 21 invention patents, and have completed international trademark registrations in 25 countries and regions. Our independently developed MXK/MSK series woodworking mortising equipment and its application results have won provincial science.
Quality Control
We are the first to obtain ISO 9001 international quality management system certification and EU CE safety certification. We have established a comprehensive quality control system and possess import and export qualifications. Our products meet international standards and have global market access.
Specification
|
Max. working width |
445mm |
|
Working thickness |
10~200mm |
|
Min. working length |
310mm |
|
Cutting depth top spindle |
5mm |
|
Bottom spindle |
3mm |
|
Feeding speed(inverter) |
5～25m/min |
|
Spindle speed |
4800r/min |
|
Cutting speed |
31m/s |
|
Spindle dia |
φ125mm |
|
Disposable blade size |
30*12*1.5 |
|
Dust outlet |
2-φ150 |
|
Total power |
16.8KW |
|
Top cutter motor |
7.5kW |
|
Bottom cutter motor |
5.5kW |
|
Feeding motor |
3.0kW |
|
Lifting motor |
0.75kW |
|
Overall dimension(L×W×H) |
283×94×178cm |
|
Weight |
2600kg |
Features of Double-Side Planer
Precision Engineering
Double side planers are designed with precision in mind, ensuring consistent thickness and surface finish across the entire workpiece.
01
Double Side Planing
The ability to plan both sides of a material simultaneously maximizes efficiency and productivity, making it ideal for high-volume production.
02
Variable Feed Speed
Adjustable feed speeds allow for customization to the material being processed for optimal cutting performance.
03
Heavy Duty Construction
These planers are designed to meet the demands of industrial woodworking, with a sturdy frame and components to ensure long-term reliability.
04
Advanced Control Systems
Double side planers all feature an intuitive control panel that allows the operator to fine-tune settings to achieve the desired results.
05
The operation of the double-sided planer is based on the simultaneous removal of a layer of wood from both sides of the workpiece. The timber is fed into the machine by special transport rollers, which ensure an even and stable feed. As the material passes through the machine, blades rotating at high speed remove excess wood, creating smooth and even surfaces. This makes the planing process not only faster, but also more precise compared to traditional machining methods. Double-sided planers can be equipped with additional features such as chip and dust extraction systems, which significantly improves working comfort and cleanliness of the workplace.
Applications Of Double-Side Planer
Furniture Manufacturing
The double sided planer can plane wood into smooth boards used for furniture production. These boards can be directly used for furniture surfaces or further processed into various furniture components.
Flooring Processing
The double sided planer can plane wood to the appropriate thickness and width, making it suitable for flooring processing. It ensures flatness and quality of the flooring, providing consumers with high-quality wood flooring.
Door and Window Production
The double sided planer assists in the manufacturing of wooden doors and windows. It can plane wood to the desired dimensions and shapes, providing high-quality wood materials for door and window production.
Double-Side Planer Safety Precautions
When operating the double-side planer , you should concentrate on it and never be distracted or distracted by other things. When operating a planer, you should stand firmly and keep your body balanced. Avoid standing unsteadily or moving frequently. It is strictly forbidden to perform any maintenance, adjustment or cleaning work when the planer is turned on. When operating a planer, you must use the tool in accordance with the prescribed method and must not replace or adjust the tool at will. During the operation of the double-side planer , keep your hands away from the tool to avoid being accidentally injured by the tool.
Our Services
Pre-Sale Service
Provide detailed introductions of our products, assist customers in selecting appropriate options, and recommend products that best meet their needs.
In-Sale Service
Deliver high-quality products with efficient shipping processes while keeping customers informed throughout all stages of production.
After-Sale Service
Ensure prompt responses to any inquiries or issues that may arise.
Packaging and Shipping
|
Packaging |
Wooden box, PE film |
|
Transportation methods |
Road transport, rail transport, sea transport, air transport |
Video
Our Certificate
FAQ
We're professional double-side planer manufacturers and suppliers in China, specialized in providing high quality custom service. We warmly welcome you to buy high-grade double-side planer from our factory.
