Your Professional Woodworking Tenoner and Mortiser Supplier!
Sichuan Qingcheng Machinery Co., Ltd. was founded in 1970, is an enterprise integrating R&D, manufacturing, sales and service of solid wood processing technology and equipment with independent intellectual property rights and independent brand. Our company mainly produces woodworking Four-Side Moulder, Double-Side Planer, Multi-blade Rip Saw, Double-end Tenoner and Five-axis CNC Machine,etc. Products are sold all over the country and exported to more than 50 countries and regions in the world, are well received by customers everywhere and we have established long-term strategic cooperative partnership.
-
![MXK3812A CNC Tenoner Machine]()
MXK3812A CNC Tenoner MachineWorking length mm: 250-1200view more
Working width mm: 10-115
Working thickness mm: 10-60
Max. legnth of tenon mm: 40（70 optional） -
![QMX6025M Double-end Tenoner Machine]()
QMX6025M Double-end Tenoner MachineWorking width mm: 300~2500view more
Working thickness mm: 10-120
Stopper space distance mm: 500
Feeding speed m/min: 6-36 -
![QMX3826D Double End Tenoner Machine (For Floor)]()
QMX3826D Double End Tenoner Machine (For Floor)Working width mm: 300-2600view more
Working thickness mm: 10-70
Distance between the positioning blocks mm: 240
Saw spindle speed r/min: 3000 -
![MSK3710-4 CNC Mortiser Machine]()
MSK3710-4 CNC Mortiser MachineMax. width of mortise mm: 25view more
Max. depth of mortise mm: 100
X-axis trip mm: 2800
Y-axis trip: mm: 170 -
![MS3113B Chisel Mortising Machine]()
MS3113B Chisel Mortising MachineMax.length of mortise mm: 130view more
Max. depth of mortise mm: 60
Max. width of mortise mm: 16
Worktable lifting trip mm: 70 -

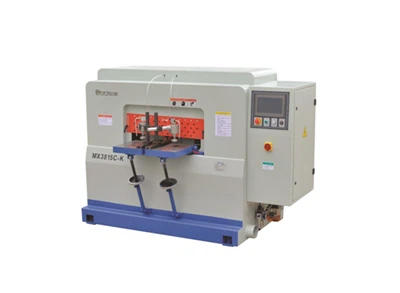

![MX3815C-K CNC Tenoning Machine]()
MX3815C-K CNC Tenoning MachineMax.size of horizontal tenon: 140mm(W)*80mm(H)view more
Max.size of vertical tenon: 80mm(W)*80mm(H)
Max. Dia. of round tenon: φ80mm
Max. Depth of tenon: 70mm -
![MXK3190A Automatic Dovetail Joint Machine]()
MXK3190A Automatic Dovetail Joint MachineWorking width mm: 500view more
Working thickness mm: 12-25
Spindle speed r/min: 18000
Spindle QTY indivual: 1
Why Choose Us
Professional Team
We possess strong technical R&D capabilities. Our R&D team consists of 55 members, including 30 professionals with senior and intermediate professional titles, forming a highly qualified and professional technical backbone.
Advanced Equipment
We have introduced hundreds of internationally advanced processing equipment, including core manufacturing equipment such as laser cutting machines, five-sided gantry machining centers, horizontal and vertical machining centers, milling machines, and high-precision grinding centers. We also utilize high-precision testing equipment such as coordinate measuring machines to fully guarantee product processing accuracy and quality consistency.
R&D Capabilities
We have obtained over 50 national patents, including 21 invention patents, and have completed international trademark registrations in 25 countries and regions. Our independently developed MXK/MSK series woodworking mortising equipment and its application results have won provincial science.
Quality Control
We are the first to obtain ISO 9001 international quality management system certification and EU CE safety certification. We have established a comprehensive quality control system and possess import and export qualifications. Our products meet international standards and have global market access.
Woodworking Tenoner Specification
|
Working length |
mm |
250-1200 |
|
Working width |
mm |
10-115 |
|
Working thickness |
mm |
10-60 |
|
Max. legnth of tenon |
mm |
40(70 optional) |
|
Spindle speed |
r/min |
12000 |
|
Spindle dia. |
mm |
Φ30 |
|
Milling power |
KW |
3.7×2 |
|
X-axis motor |
KW |
1.0×2 |
|
Y-axis motor |
KW |
1.0×2 |
|
Horizontal deflection angle |
° |
-5°-+15° |
|
Vertical deflection angle |
° |
-10°-+10° |
|
Dust outlet |
mm |
Φ100×2 |
|
Dimension |
cm |
265×140×170 |
|
Weight |
Kg |
1950 |
Advantages Of Woodworking Tenoner
Enhanced Precision and Accuracy
One of the most significant advantages of woodworking tenoner is their ability to deliver exceptional precision and accuracy in woodworking tasks. With computer-controlled cutting and shaping processes, these machines can produce tenons with tight tolerances and consistent dimensions.
Increased Efficiency and Productivity
Woodworking tenoner automate repetitive tasks and streamline production processes, leading to substantial gains in efficiency and productivity. Woodworking tenoner contribute to increased output and shorter production times by reducing the need for manual intervention and optimizing workflow.
Versatility in Woodworking Applications
Woodworking tenoner offer remarkable versatility in handling a wide range of woodworking applications and materials. Whether crafting furniture, cabinetry, doors, or windows, these machines can accommodate various wood types, sizes, and shapes with ease. This versatility expands the scope of woodworking projects, allowing for greater creativity and innovation.
Reduction in Material Waste
Efficient material utilization is crucial in woodworking to minimize waste and maximize yield. Woodworking tenoner optimize cutting paths and nesting layouts to minimize scrap and optimize material usage. These devices reduce material waste and manufacturing costs by precisely cutting tenons with a small kerf and optimizing part positioning.
Improved Safety and Ergonomics
Woodworking tenoner incorporate advanced safety features and ergonomic design elements to ensure a safe and comfortable working environment for operators. With automated cutting and tool-changing processes, these machines minimize the risk of accidents and injuries associated with manual woodworking equipment.
Woodworking Tenoner Operation Steps
Programming the Machine
The first step involves programming the woodworking tenoner using CAD/CAM software to create a digital model of the joint specifications. This model includes detailed measurements for the tenon—such as width, length, and depth—which are converted into G-code instructions that guide the machine's movements during cutting.
Positioning the Workpiece
Once programmed, the operator secures the wood piece onto the machine's worktable using advanced clamping systems. Proper alignment is crucial; any misalignment can lead to inaccurate cuts or poorly fitting joints.
Cutting and Shaping
With the workpiece secured, the woodworking tenoner executes the cutting process based on the programmed instructions. The machine's cutting heads move along predetermined paths to shape the tenon according to its design specifications. Different types of tenons—such as stubs or through tenons—can be produced depending on project requirements.
Finishing Operations
After cutting, additional finishing operations may be performed to smooth edges or remove excess material. Quality control measures ensure that all cut pieces meet specified standards before they proceed to assembly.
Applications of Woodworking Tenoner
Furniture Manufacturing
Creating strong joints for tables, chairs, and cabinets.
Cabinetry
Producing precise joinery for kitchen and bathroom cabinets.
Custom Wood Projects
Allowing for intricate designs tailored to specific client needs.
Architectural Woodwork
Crafting components for doors, windows, and moldings.
Woodworking Mortiser Specification
|
Max.length of mortise |
mm |
130 |
|
Max. depth of mortise |
mm |
60 |
|
Max. width of mortise |
mm |
16 |
|
Worktable lifting trip |
mm |
70 |
|
(left and right)Tilt angle of work table |
° |
-20°~+20° |
|
(forward and backward)Tilt angle of work table |
° |
-5°~+25° |
|
Spindle speed |
r/min |
15000 |
|
Hunting frequency |
pcs/min |
170-230 |
|
Motor power |
kW |
2.2 |
|
Working air pressure |
Mpa |
0.6 |
|
Overall dimension |
cm |
148*115*125 |
|
Weight |
kg |
550 |
Advantage of Woodworking Mortise
High production efficiency: High-speed continuous milling, while one set of workpieces is being processed, other workpieces are being loaded and unloaded, and production is uninterrupted.
Higher precision: CNC input and output, a set of workpieces are positioned and processed at one time, ensuring high quality and high precision of the workpiece.
Convenient adjustment: Using advanced CNC system, human-machine dialogue is simple and easy to learn, and ordinary workers can operate it after 2-3 hours of training. Use the tool setting rod to set the tool, no programming, point setting, and the processing program can be automatically generated. It only takes about 10 minutes to adjust a workpiece.
Wider application: Suitable for processing workpieces with various shapes and different specifications of mortise and tenon (hole), especially for multiple mortise and tenon, small mortise and tenon spacing, hole and slot combination, different mortise and tenon lengths and depths of the same workpiece, and complex heterogeneous workpiece processing.
Woodworking Mortiser Instructions
1. Please turn on the machine, then debug and save the mechanical parameters on the screen.
2. Debug the loading position, cutter position and sample position.
3. Place the sample that needs to be debugged at the loading position, then activate the manual mode on the touch screen, then operate the hand wheel and carry out the slot mortising in manual mode.
4. After completing and confirming the processes in manual mode, you can activate the automatic mode on the touch screen.
5. Place the wood at the loading position, then press the start button.
Our Services
Pre-Sale Service
Provide detailed introductions of our products, assist customers in selecting appropriate options, and recommend products that best meet their needs.
In-Sale Service
Deliver high-quality products with efficient shipping processes while keeping customers informed throughout all stages of production.
After-Sale Service
Ensure prompt responses to any inquiries or issues that may arise.
Packaging and Shipping
|
Packaging |
Wooden box, PE film |
|
Transportation methods |
Road transport, rail transport, sea transport, air transport |
Video
Our Certificate
FAQ
We're professional woodworking tenoner and mortiser manufacturers and suppliers in China, specialized in providing high quality custom service. We warmly welcome you to buy high-grade woodworking tenoner and mortiser from our factory.
