Video

Basic Info.

Model NO.	SL-1000S	Origin	China
Spindle Number	Double-Spindle	Spindle Layout	Horizontal
Controlling Mode	CNC	Feed Mode	Manual
Customized	Customized	Certification	CE
Color	Customized	Condition	New
Applicable Industries	Woodworking Factories,Flooring Industry	After-sales Service	1 Year
Voltage	380V, 50Hz	Function	Woodworking Machinery
Power Type	Electric	Installation Service	on-Site Installation
Transport Package	Wooden Box/Wrapping Film	Core Components	Engine, Bearing, Gearbox, Motor, etc.

Packaging & Delivery

Package Size	Package Gross Weight
6000.00cm * 6000.00cm * 2000.00cm	6000.000kg

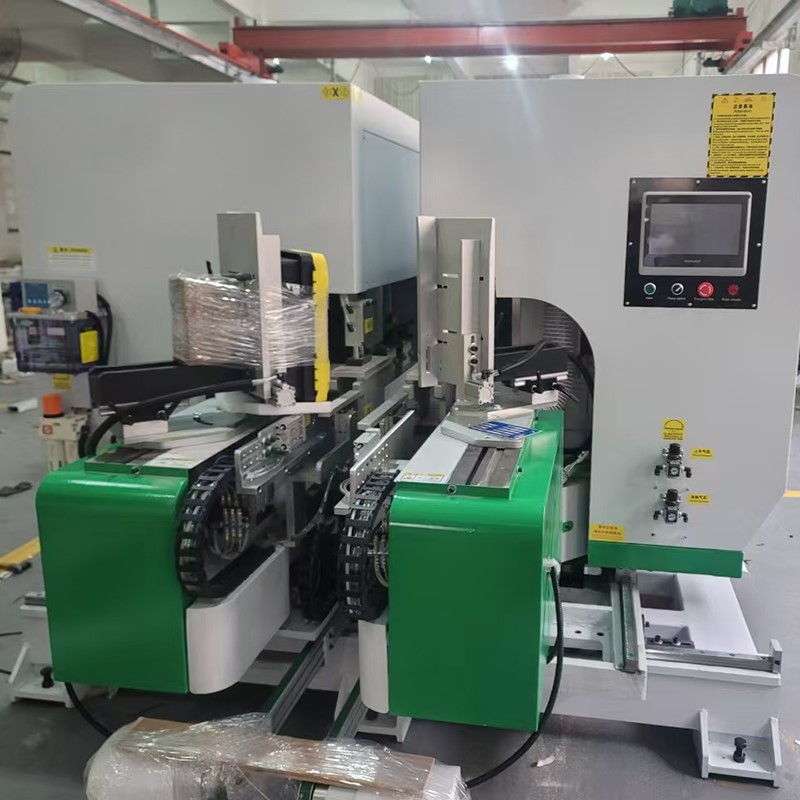

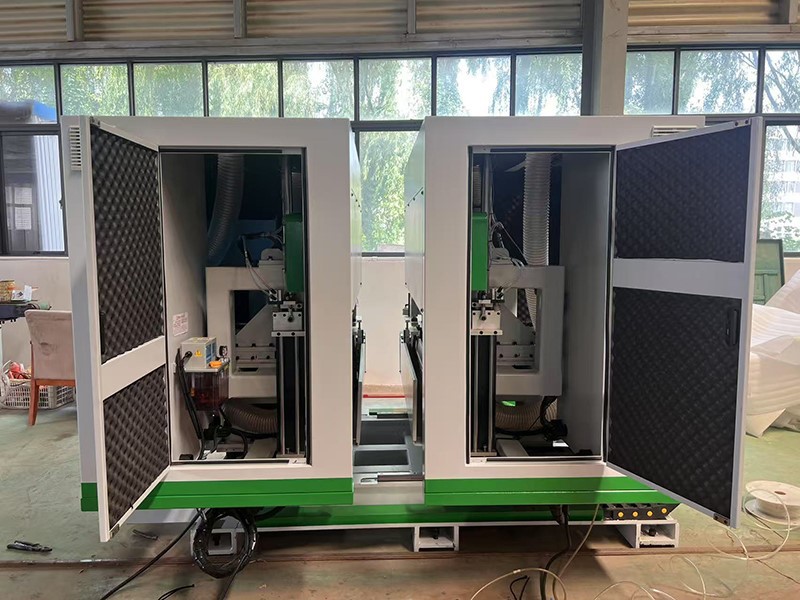

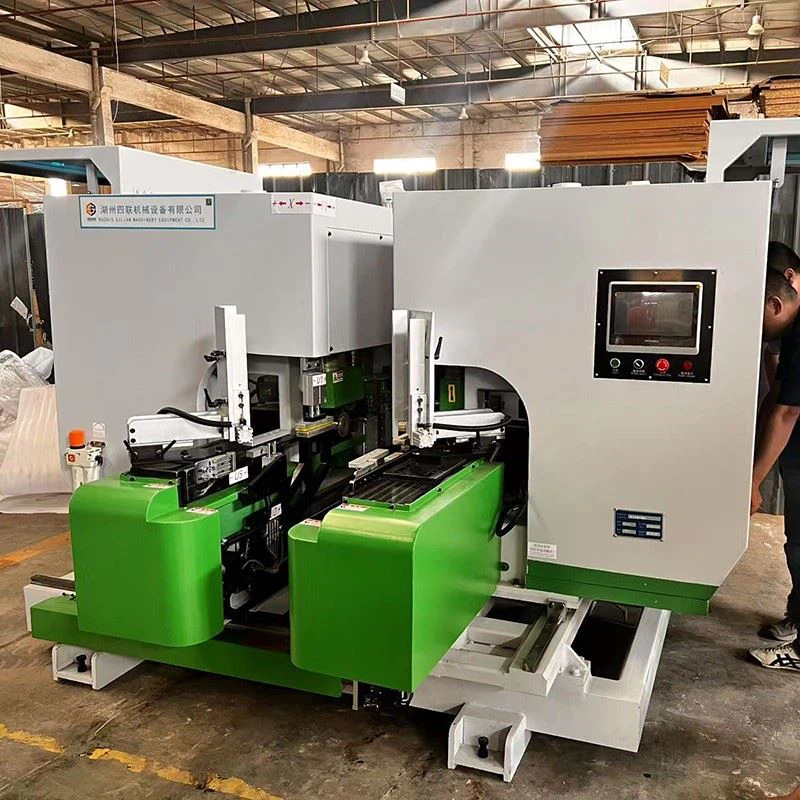

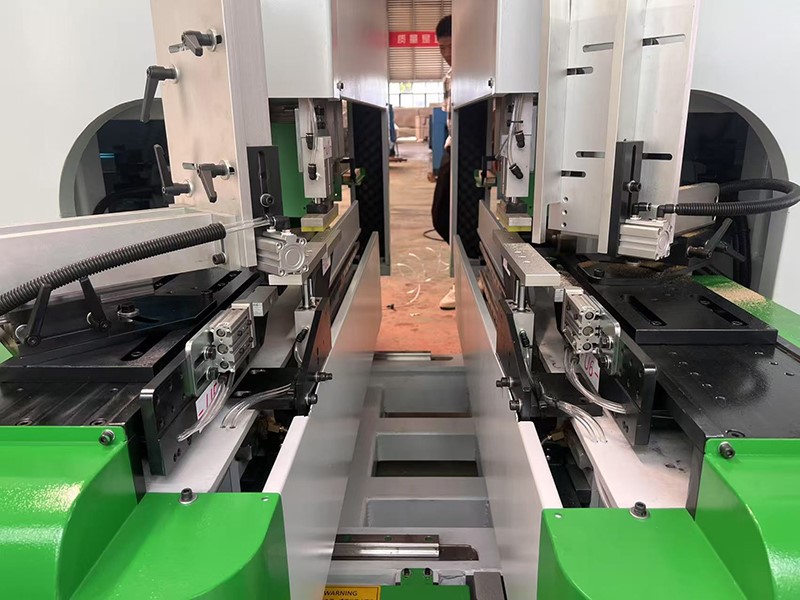

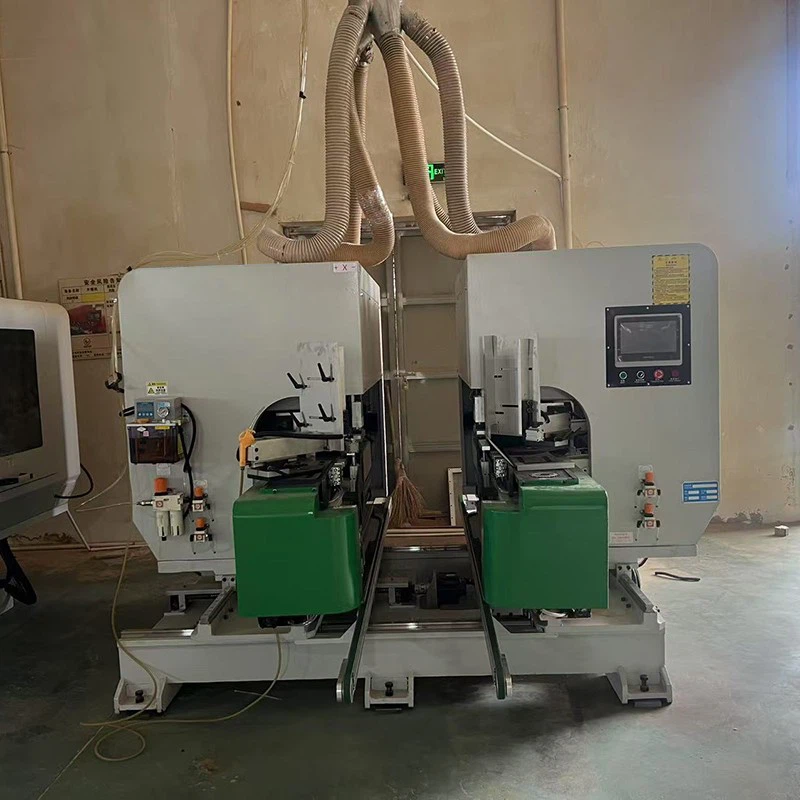

Product Description

Specification

Performance Indicators	Parameter
Product size	side length 580mm,plate width 120mm
Feeding table moving servo	0.85KW*1
Silo pre-feed sero	0.4KW*1
Output Servo	0.4KW*1
Efficiency	about 6-8/min
The first three row mortise motor:5.54kw (40axis diameter.8000RPM)*6, of which 5 are counter-clockwise rotation,one is clockwise rotation.
The fourtth row mortise motor:3.7kw (30axis diameter,12000RPM)*2, both are counter-clockwise rotation.
Automatic bin feeding and discharging with an automatic coneyor belt, unloaded in the back automatic stacking.
This machine is a special machine, the product size and angle adjusted, no longrer adjusted.
The machine needs a left and a right supporting use.

FAQ

Q1:How long is the warranty period?

A: The free warranty period is one year.

Q2: Is after-sales service provided?

A: For on-site installation and maintenance, the buyer is responsible for providing the air tickets of the technical personnel,Matters related to hotels, etc.

Q3: Why choose our products?

A: We possess strong technological research and development capabilities, advanced production equipment and solid processing technology.

Hot Tags: Fishbone floor tenon slotting machine, China Fishbone floor tenon slotting machine manufacturers, suppliers, factory
