Core advantage：

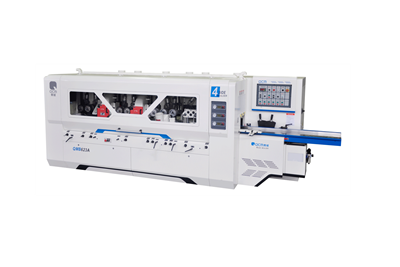

Equipped with 6 high-efficiency planing spindles, the machine features a scientifically designed layout: 2 upper planetary spindles, 2 lower cutter shafts, and 1 planing spindle on each side edge. With just a single pass, the wood can be smoothly machined on all four sides simultaneously, greatly streamlining the production process and saving processing time.
The machine features a robustly designed base paired with a powerful drive engine, ensuring absolute stability even during high-speed operations. Additionally, the built-in continuous lubrication system effectively reduces mechanical wear, guaranteeing smooth and stable long-term performance.
Adopting a continuous roller feed system, the machine achieves high-speed, uninterrupted feeding at speeds of up to 12 – 120 m/min. This design not only accelerates the processing rhythm but also effortlessly meets the high-volume demands of production lines for flooring, wall panels, and laminated timber.
The machine is equipped with an independent button control panel, making parameter adjustments and operation highly intuitive and user-friendly. Operators can quickly and accurately set machining parameters based on the specific requirements of different materials, thereby reducing the reliance on highly skilled labor.
The machine integrates a high-capacity dust extraction system that rapidly removes and clears the massive amount of sawdust and dust generated during high-speed planing. This not only ensures a clean machined surface but also provides a more eco-friendly and safe working environment for the workshop.
This machine boasts excellent processing compatibility, with a maximum machining width of 20 – 230 mm and a maximum machining thickness of 7 – 160 mm. Whether it is for interior wood products, laminated timber, or various flooring and wall panels, it can easily handle them all, making it an ideal choice for modern wood processing plants looking to boost productivity.
1. The machine body(frame) is made of cast iron, stable performance.
2. The whole machine is with cover, safe and low noice.
3. The main spindle diameter is φ50.
4. Equipped with 2 sets of cylinder floating bottom active rollers in front of the first bottom spindle, ensuring the strong and smooth feeding.
5. The rear top, rear bottom, right and left spindles are equipped with automatic straight-blade grinding mechanisms, to ensure on-line sharpening and keep the the consistency of the cutting circle.
6. The rear top and rear bottom spindles are equipped with oil-pressure outboard support structures, ensuring the high speed cutting performance and the good stability;
7. The front outer side pressure force of the left vertical spindle and the front top pressure force of the top spindle are driven by cylinders.
8. And the front pressure plate of the top cutter adopts the sectional type pressing structure, which can adjust the height of the front pressure plates respectively to facilitate the processing of wood products of different shapes.
9. The two top cutter spindles can do electric synchronous lifting, and also can adjusted separately through fine-tuning mechanism, which is easy and quick to operate.
10. The adjustment and control of the cutter spindle is controlled by PLC and touch screen, and with pneumatic lock; and each spindle also can be adjusted manually through the fine tuning mechanism.
11. Large diameter upper feeding wheels and overrunning clutch are installed at the feeding inlet to realize high speed feeding and ensure smooth feeding.
12. Feeding system is equipped with gear boxs and universal couplings. And the feeding speed is controlled by frequency inverter.
13. The pressure force of the rear pressure plate of top cutter is also controlled by cylinder.
14. The main electrical components and transmission parts are from international brands, stable performance.
|
Item |
Unit |
QMB623GH |
QMB723GH |
|
|
Working width(cutter dia.φ140) |
mm |
20-230 |
20-230 |
|
|
Working thickness(cutter dia.φ140) |
mm |
10-160 |
10-160 |
|
|
Min.working length(single/continously) |
mm |
720/280 |
720/280 |
|
|
Max.lifting of movable long feeding table |
mm |
10 |
10 |
|
|
Max.movement of movable long side fence |
mm |
10 |
10 |
|
|
Spindle QTY |
pcs |
6 |
7 |
|
|
Spindle dia. |
mm |
φ50 |
φ50 |
|
|
Spindle speed |
m/min |
7000 |
7000 |
|
|
Feeding speed |
m/min |
10-60 |
10-60 |
|
|
Cutter dia. |
front bottom cutter |
mm |
Φ140-φ180 |
Φ140-φ180 |
|
L/R cutter |
mm |
φ140-φ250 |
φ140-φ250 |
|
|
top cutter |
mm |
φ140-φ250 |
φ140-φ250 |
|
|
second bottom cutter |
mm |
φ140-φ250 |
φ140-φ250 |
|
|
Motor power |
Total power |
kw |
75 |
105.87 |
|
front bottom spindle |
kw |
7.5 |
11 |
|
|
L/R vertical spindle |
kw |
11×2 |
11×2 |
|
|
first top spindle |
kw |
11 |
15 |
|
|
second top spindle |
kw |
11 |
15 |
|
|
second bottom spindle |
kw |
11 |
15 |
|
|
Third bottom spindle |
kw |
null |
15 |
|
|
feeding motor |
kw |
11 |
11 |
|
|
beam lifting motor |
kw |
0.75 |
0.75 |
|
|
top cutter lifting |
kw |
0.75 |
0.75 |
|
|
advance and retreat of left spindle |
kw |
0.37 |
0.37 |
|
|
Dust outlet dia. |
mm |
6-φ180mm |
7-φ180mm |
|
|
Upper feeding wheel dia. |
mm |
φ140×φ35×50 |
φ140×φ35×50 |
|
|
Axial movement of vertical spindle |
mm |
80 |
80 |
|
|
Axial movement of horizontal spindle |
mm |
40 |
40 |
|
|
Overall dimension(L*W*H) |
cm |
566×210×190 |
566×210×190 |
|
|
Weight |
kg |
8300 |
8800 |
|
Note: all above is for reference. We reserve the right of improving the parameter and apperance of this product.
