Item |
Unit |

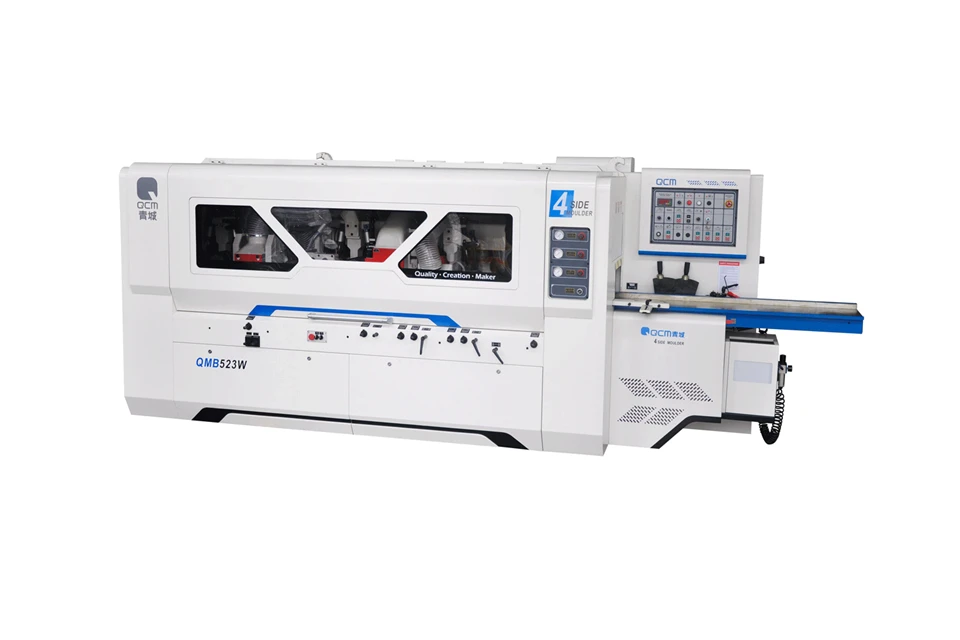

QMB523W |
|
|
Working width(cutter dia.φ125) |
mm |
20-230 |
|
|
Working thickness(cutter dia.φ125) |
mm |
8-160 |
|
|
Max.lifting of movable long feeding table |
mm |
7 |
|
|
Max.movement of mavable long side fence |
mm |
7 |
|
|
Upper feeding wheel dia. |
mm |
φ140mm |
|
|
Feeding speed |
m/min |
8~33m/min |
|
|
Spindle speed |
r/min |
6800r/min |
|
|
Spindle dia. |
mm |
φ40 |
|
|
Cutter dia. |
bottom cutter(planing) |
mm |
φ125mm |
|
bottom trimming cutter D*H |
mm |
φ152×12mm |
|
|
L/R cutter |
mm |
φ108～φ200mm |
|
|
top cutter |
mm |
φ108～φ200mm |
|
|
Universal spindle cutter |
mm |
φ108～φ160mm |
|
|
Motor power
|
bottom spindle |
kw |
5.5 |
|
right vertical spindle |
kw |
5.5 |
|
|
left vertical spindle |
kw |
7.5 |
|
|
top spindle |
kw |
7.5 |
|
|
universal spindle |
kw |
7.5 |
|
|
feeding spindle |
kw |
4 |
|
|
beam lifting spindle |
kw |
0.75 |
|
|
Air supply pressure |
|
0.6MPa |
|
|
Collection system air requirement |
|
160m³/min |
|
|
Collection system air speed |
|
30~40m/s |
|
|
Overall dimension |
cm |
468×185×183(cm) |
|
|
Weight |
kg |
5500Kg |
|
Note: all above is for reference. We reserve the right of improving the parameter and appearance of this product.
