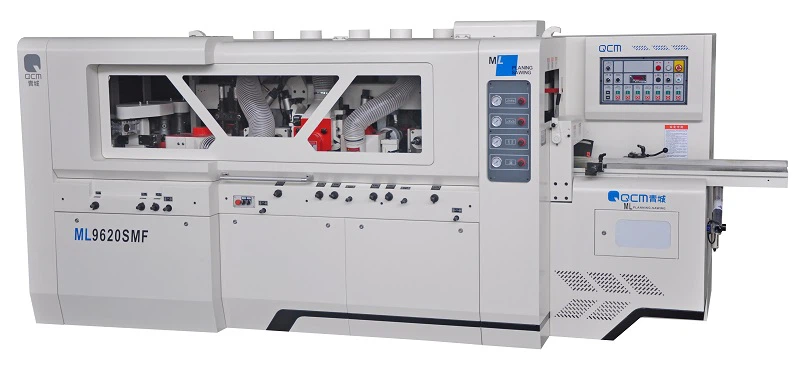

This machine can do four-side moulder job and horizontal multi-blade saw job, first four-side planing then right-left double-side saw. It is very fit for machining Sauna board, wall panel,etc, very efficiently.
Core Advantage:
Integrating 6 independent machining axes, this machine completes four-side planing (width and thickness sizing) and longitudinal rip sawing in a single pass. This highly integrated composite processing mode breaks down traditional workflow barriers and significantly shortens production cycles, making it an essential tool for efficient mass production in solid wood furniture and building material enterprises.
Benefiting from multi-axis coordinated operation and a precision guide rail transmission system, the machine maintains exceptional stability during high-speed cutting. The processed boards feature precise dimensions with minimal diagonal errors, and the four-sided planed surfaces are mirror-smooth. This effectively eliminates wave marks and tear-outs, drastically reducing the workload for subsequent sanding processes.
Each spindle is equipped with an independent high-power motor, delivering abundant cutting torque. Whether machining ordinary pine or high-density hardwoods like mahogany and oak, it ensures smooth feeding and efficient chip evacuation, maintaining outstanding processing quality even under heavy loads.
The machine utilizes an advanced CNC system, allowing operators to set and fine-tune the machining dimensions and feed speeds of each axis with a single touch on the screen. This intelligent operation not only reduces reliance on manual experience but also enables rapid changeovers when switching product specifications, greatly enhancing the overall equipment utilization rate.
The seamless integration of planing and multi-rip sawing functions optimizes the cutting paths and depth of cut. This design not only improves the timber yield rate but also effectively minimizes wood wastage and dust generation during processing, achieving a win-win for both economic and environmental benefits for the enterprise.
Technical Parameter
|
Item |
Unit |
ML9620SMF |
|
Working width |
mm |
20-200 |
|
Working thickness |
mm |
10-120 |
|
Min.working length(single/continuously) |
mm |
650/480 |
|
Max.lifting of movable long feeding table |
mm |
6 |
|
Max.movement of movable long side fence |
mm |
6 |
|
Planing spindle rotation speed |
r/min |
6800 |
|
Saw spindle rotation speed |
r/min |
4000 |
|
feeding speed |
m/min |
6-30 |
|
Saw spindle dia. |
mm |
φ50 |
|
Planing spindle dia. |
mm |
φ40 |
|
Cutter dia. bottom cutter |
mm |
φ125/φ152trimming |
|
L/R planing cutter |
mm |
φ110-φ180 |
|
Upper cutter |
mm |
φ110-φ180 |
|
L/R saw blade |
mm |
φ180-φ300 |
|
Total power |
KW |
72.75 |
|
bottom cutter power |
KW |
5.5 |
|
L/R cutter power |
KW |
7.5/7.5 |
|
Upper cutter power |
KW |
7.5 |
|
Saw power |
KW |
2*18.5 |
|
Feeding motor |
KW |
5.5 |
|
Beam lifting motor |
KW |
0.75 |
|
Rear side feeding power |
KW |
2*0.75 |
|
Dust outlet dia. |
mm |
6*φ150 |
|
Overall size |
cm |
442*179*175 |
|
Weight |
KG |
4850 |
Note: the appearance and technical parameter above are subject to the real product.
